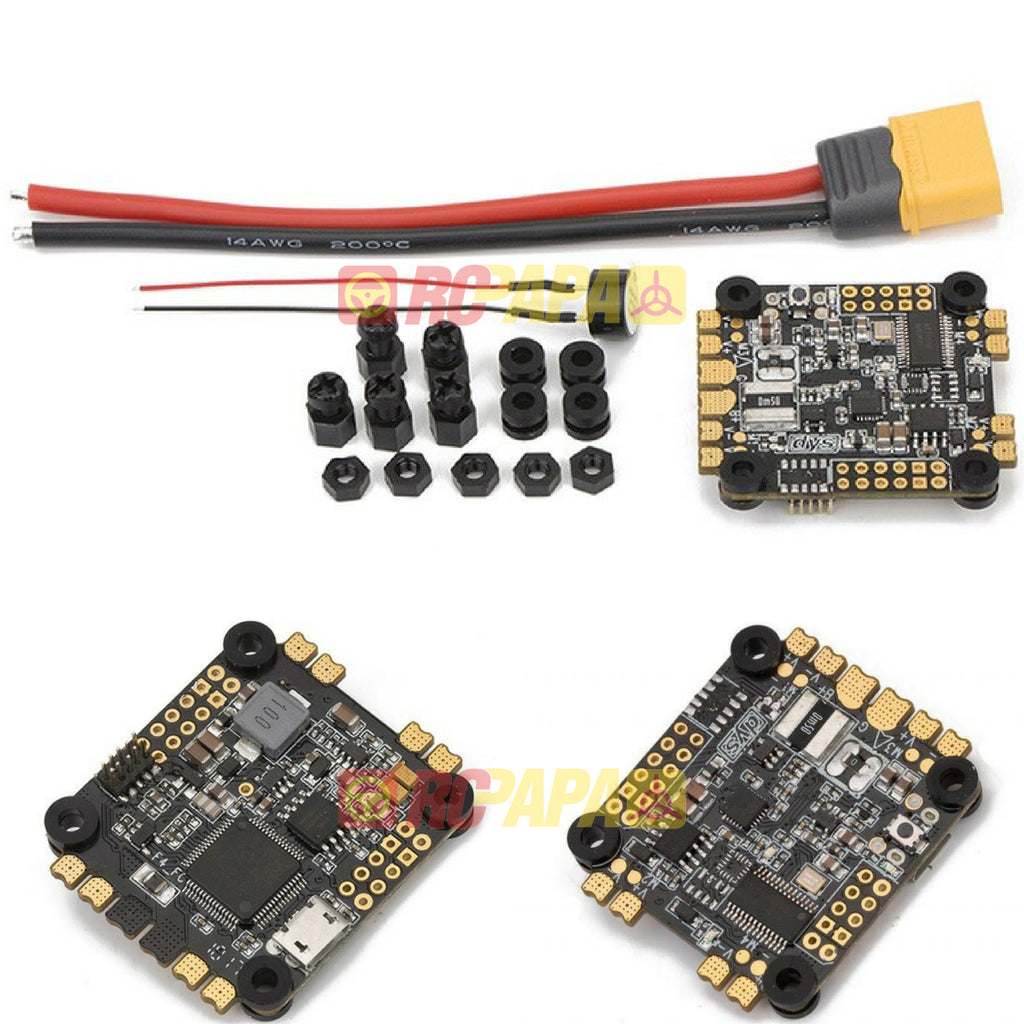

DYS F4 Pro FC Flight Controller with Built-in PDB


Summary
DYS F4 Flight Control uses the OMNIBUSF4 firmware, it is integrated with OSD and Current Sensor, so you don't need to flash firmware additionally, and you could debug OSD via BF ground station. You also could adjust the PID by OSD via remote control. The integrated current sensor can monitor the real-time power consumption. This DYS F4 Flight Control is compatible with all ESCs, as well as DYS 4-in-1 esc without soldering. DYS F4 flight Matekcontrol with 4 damping balls reduces the vibration of motors, which will make your drone more stable during the flight.

Features
OMNIBUSF4 firmware
STM32F405 GRT6, refresh rate up to 8K
PCB 3OZ copper enhance current stability and cooling fast,MAX 150A current capacity
Exposed pad for easy soldering
Compatible with all ESCs, as well as DYS 4-in-1 esc without soldering
Integrated OSD, don't need to flash firmware additionally,debug OSD via BF ground station.
Integrated current meter to monitor the real-time power consumption
Adjust the PID by OSD via remote control
Adjust the VTX via open ports such as power, frequency band, frequency point (Note: The VTX should have this function like TBS one and DYS VTX.)
DYS F4 flight control with 4 damping balls reduces the vibration of motors and makes your drone more stable during the flight.

Specifications
Firmware: OMNIBUSF4 firmware
MCU: STM32F405
BEC Output: 5V@3A
Gyro: MPU6000
Lipo:2-6s
Net weight: 11.2g(exclude wire)
Size: 42x36mm
Hole Distance: 30.5x30.5mm
