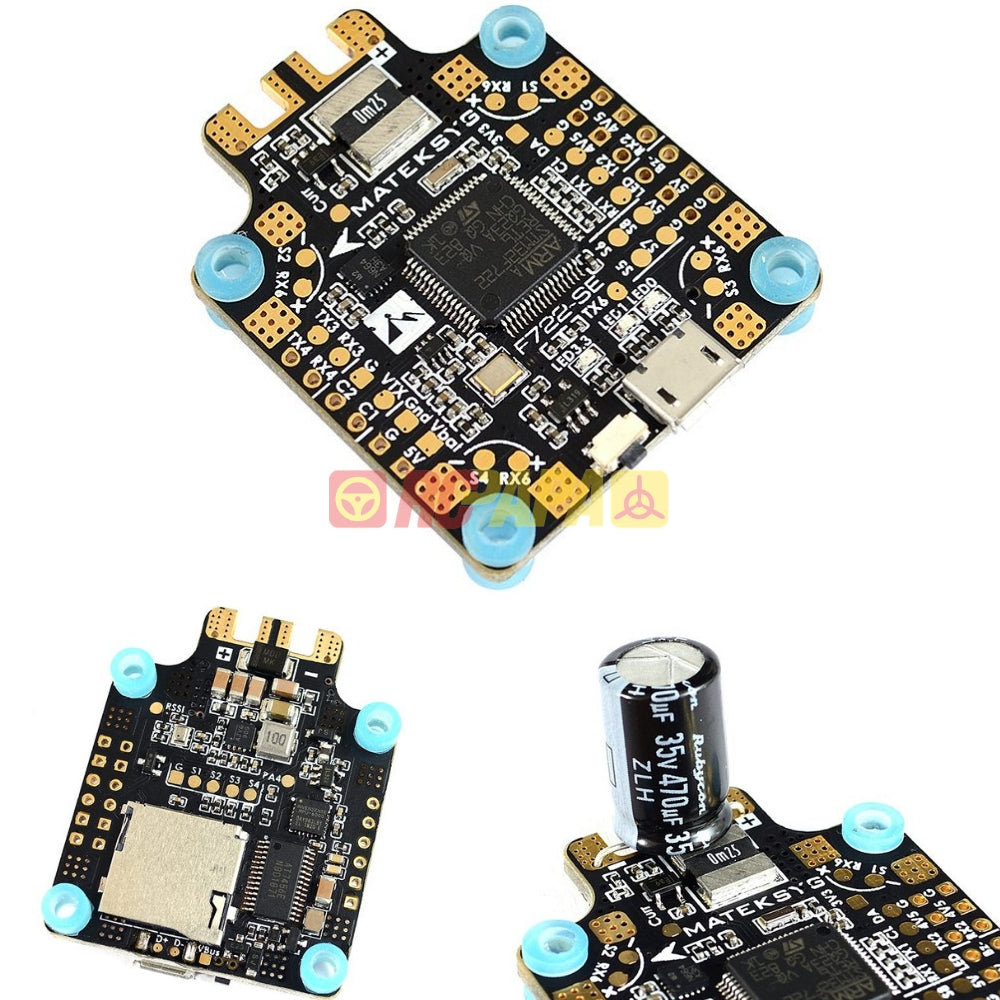

Matek Flight Controller F722-SE

Matek Flight Controller F722-SE

US$44.99

FC Specifications
MCU: 216MHz STM32F722RET6
IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
Baro: BMP280 (I2C)
OSD: AT7456E (SPI)
Blackbox: MicroSD card slot (SPI)
5x Uarts (1,2,3,4,6) with build-in inversion
1x Softserial supported
8x Dshot/Proshot/oneshot outputs
1x I2C
4x RX6 pad(one per cornet) for BLheli32 ESC telemetry
4x individual ESC power/signal pads
1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1)
Dual Camera image switchable via AUX (modes tab-user2)
Camera control: Yes
Smartaudio & Tramp VTX protocol: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Additional ADC for INAV analog airspeed

PDB Specifications
Input: 6~36V (3~8S LiPo) w/TVS protection
PDB: 4x35A (Max.4x46A)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
Current Sensor 184A (Scale 179)
Battery Voltage Sensor: 1:10 (Scale 110)
FC Firmware
BetaFlight / INAV
Target: MATEKF722SE
Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 36 x 46 mm
Weight: 10g

Including
1x FC F722-SE
6x silicon grommets M4 to M3
1x FR4 PCB Plate 36*36*1mm
1x Rubycon ZLH 35V/470uF (Low ESR)

Matek Flight Controller F722-SEMatek Flight Controller F722-SEMatek Flight Controller F722-SEMatek Flight Controller F722-SE
