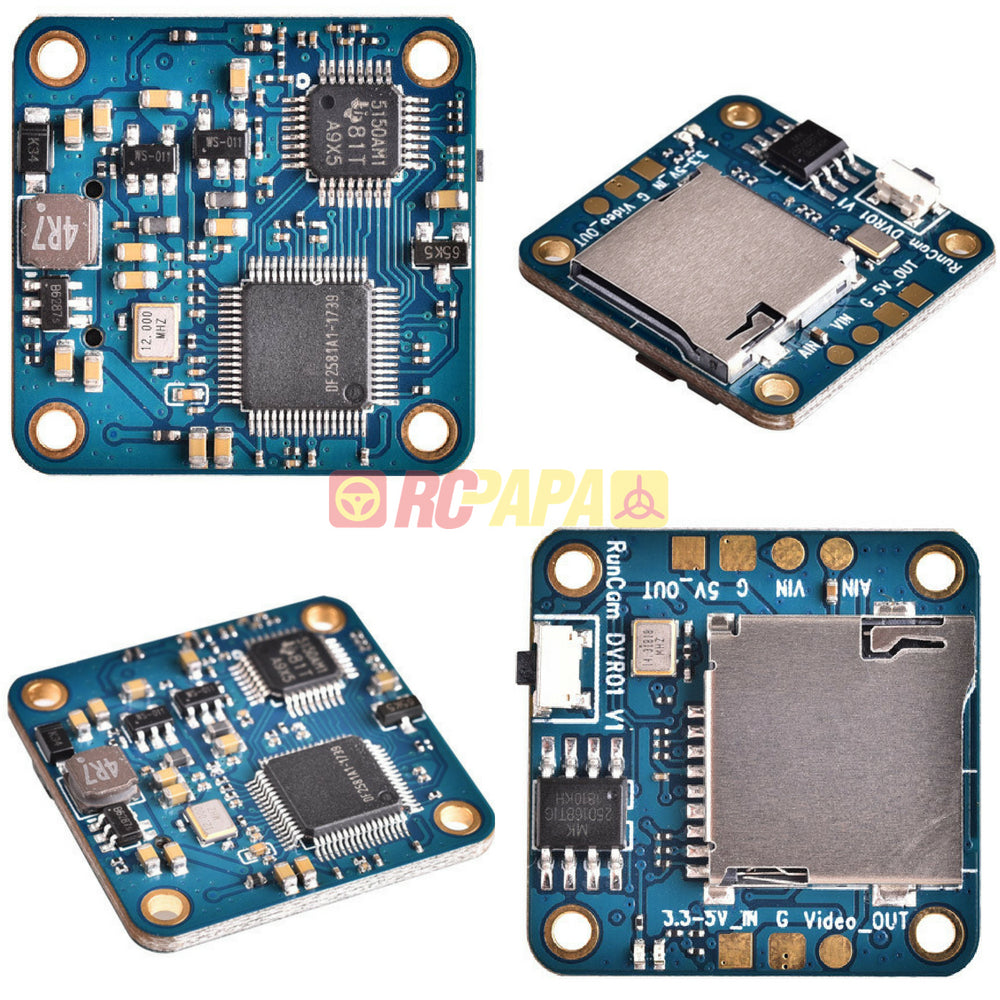

RunCam Mini FPV DVR for FPV Wing mini Quad Racing Drone
Specification:
Model: RunCam FPV DVR
Power in: DC 3.3-5.5V
Work Current: 250mA Max
Power out: DC 5V @ Max 250mA
Video in: CVBS@1Vp-p 75Ω
Video out: CVBS@1Vp-p 75Ω
Encoder: MJPEG@AVI
Resolution: VGA@640 x 480@30(NTSC) 25(PAL)
Audio in: MIC
Micro SD Card: Max 32G
Dimension: 25 x 25mm @20 × 20 M2 holes
Net Weight: 3.5g
Features:
Designed for Mini FPV Racing Drone! ( 25*25mm @ 20*20mm M2 holes)
Lossless video output for VTX! (Since it has been loaded to the DVR, it needs to synchronize the video amplification output)
Black technology! Can record high-frequency vibration motor audio without access to MIC!
Package included:
1 x Runcam DVR01 Mini FPV DVR Module
1 x Set of M2 screws
1 x SD card protector
1 x 3pin FPV silicone cable (Female)
1 x Manual
