SpeedyBee Bluetooth-UART Adapter (BetaFlight Supported) - RC Papa

SpeedyBee Bluetooth-UART Adapter (BetaFlight Supported)


Package

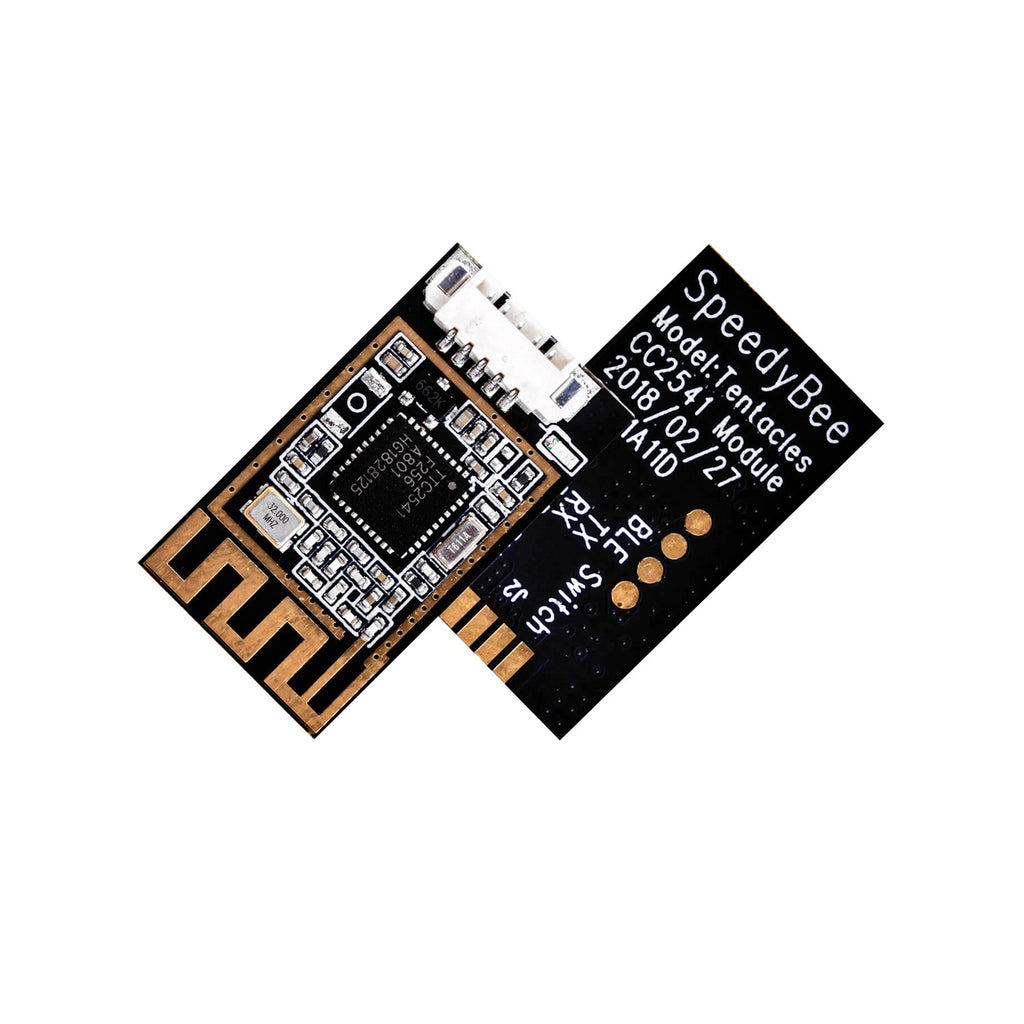

1x Bluetooth PCB
1x 5PIN Cable
1x 3M Double-sided Tapes
1x Heat shrink tube
1x Manual

Betaflight Configurator Supported
iOS and Android APP allow you to connect the Flight controller PCB via a mobile device for parameters settings.

iOS 10.0+:iPhone4S, iPad 3rd Gen and later Download

Android 4.3+ Download

No Bluetooth signal interference during the flight

Throttle Armed, the Bluetooth module will deactivate automatically

Throttle Disarmed, the Bluetooth module will activate automatically

Parameter

Output Power: 0dBm

Receiver Sensitivity: -94 dBm

External Interfaces: BROADCAST SWITCH, TX, RX, 3~5V DC Input, GND

Transmission rate: Bidirectional 1K/S

Bluetooth Protocol: Bluetooth Specification V4.0 BLE

Transmission distance: 30m

Frequency range: 2400 MHZ - 2483.5MHZ(2.4G ISM Band)

Band rate: 2400,4800,9600,14400,19200(default),28800,38400,
57600,76800,115200,230400

Operating Voltage: 3.3V - 5.0V DC

Working current: 8.3mA~10mA

Weight: 1.4g

Dimensions: 27*15*4.5mm
