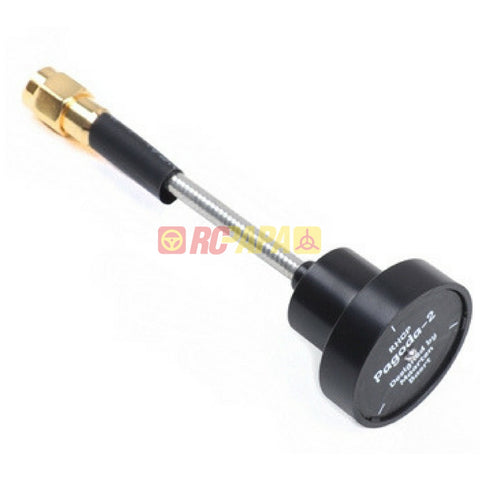

Pagoda-2 Omni 5.8G Antenna DIY Kit (RHCP)

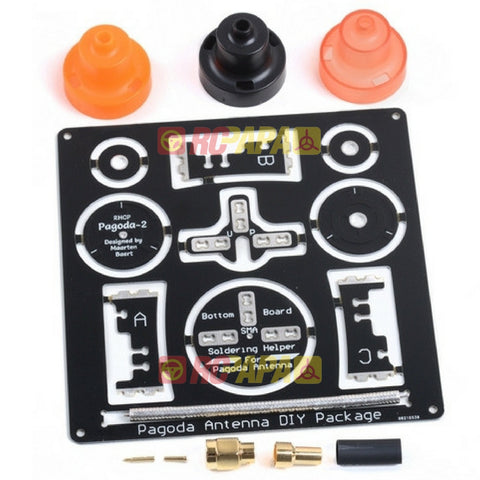

Package Includes

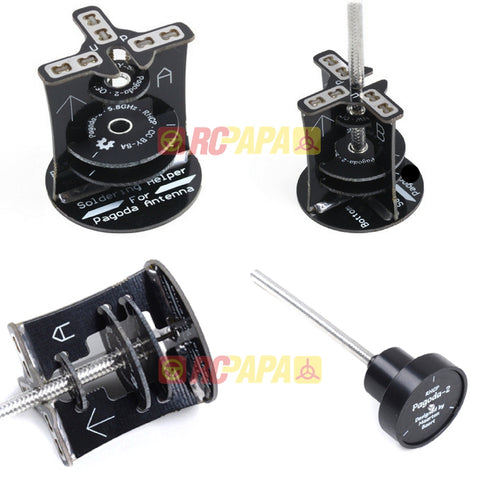

Assembly Jig x1
Pagoda Antenna PCB x1
RG402 coax L＝70mm x1
SMA/RPSMA connector x1
Stiffener Tubes x1
Shrink Tubes x1
Protective Shell x3 (Random Color)
Features
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Radiation efficiency: 95%
Weight:8.9g
Length:80mm - need a stubby - just cut to length
