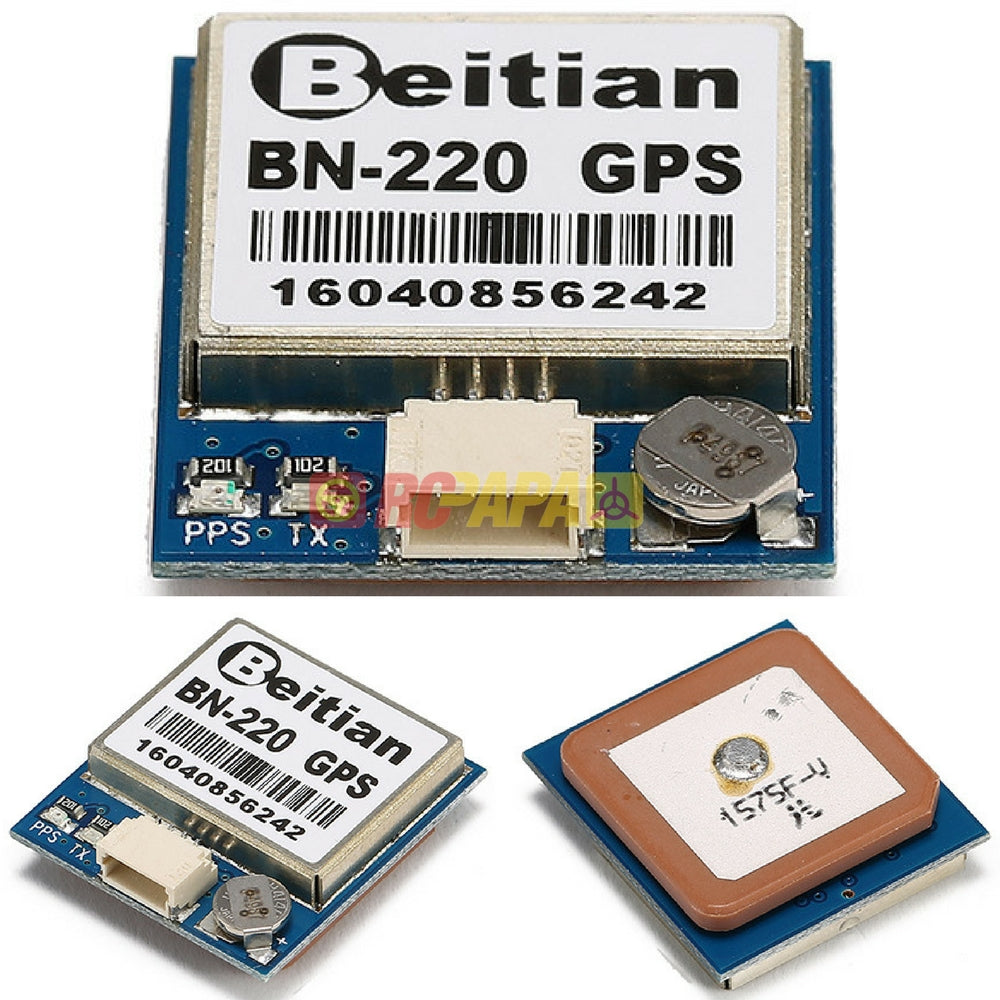

BeiTian BN-220 High Precision GPS GLONASS Dual Module with Antenna 10Hz for Flight Controller

US$10.99

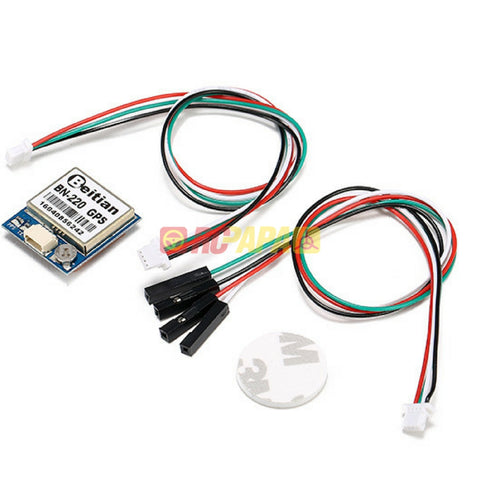

Package included
1x BN-220 GPS Module

Specifications
Dimension: 22*20*6mm
Power supply: DC 2.8-6.0V
Power consumption: 50mA@5V
Receive format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
Receive channel: 72
Receive sensitivity: -167dbm for tracking; -148dbm for capture
Location time: Cold start 26S; Warm start 25S; Hot start 3S
Horizontal precision: 2.0m at open space
Output frequency: 1hz~10hz, default 1Hz
Speed precision: 0.1m/s(without aid)
Acceleration precision: 0.1m/s2(without aid)
Dynamic features: Max.height 18,000m; Max.speed 515m/s; Max.acceleration 4g
UART port: UART communication: TXDA/RXDA, support speed ratio 4800bps~115200bps, default 9600bps
Work temperature: -40~+85°C
Weight: 5.3g

Module Pin
1. GND, grounded
2. TX, data module output
3. RX, data entry module
4. VCC, power supply module, 2.8V-6.0V

BeiTian BN-220
