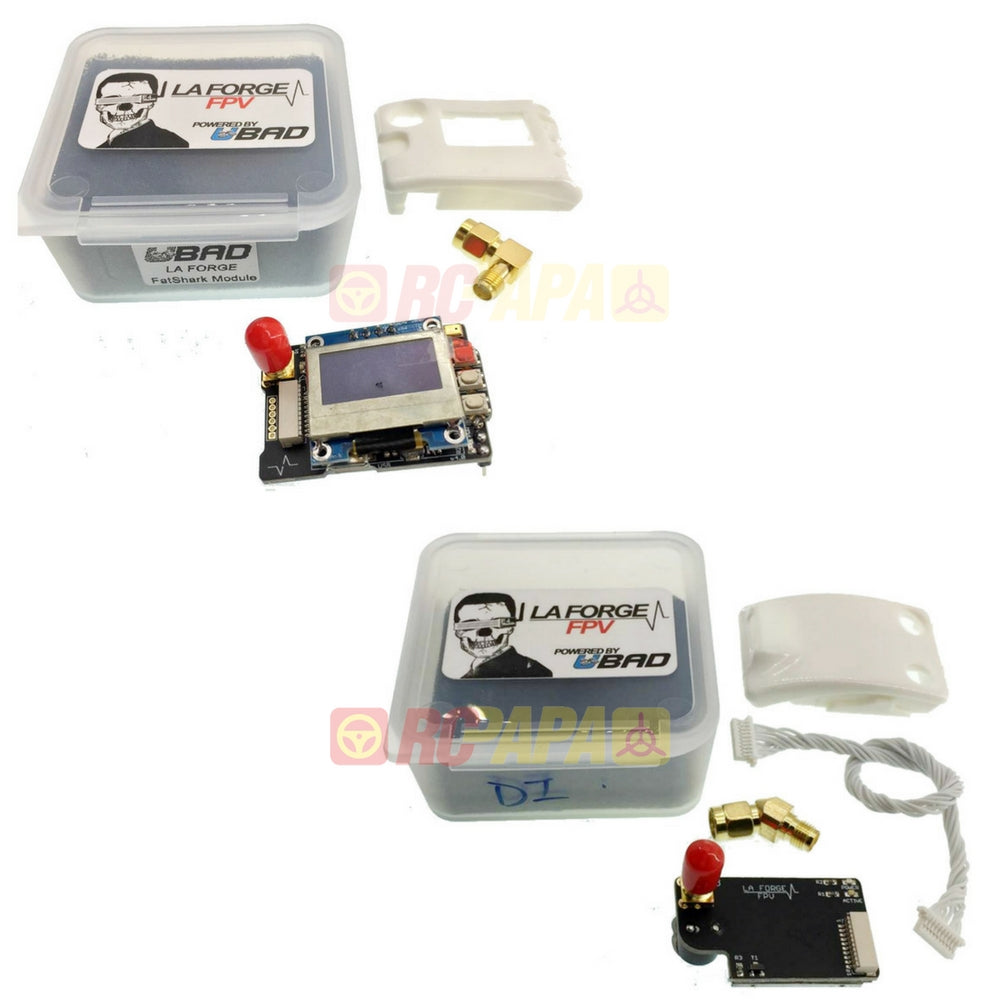

LAFORGE Fatshark Module V4 w/ Diversity Module Set
1x LaForge Main Module v4
1x Main Module Molded door
1x 90° SM
1x LaForge Diversity Module v4
1x Diversity Module Molded door
1x 45° SMA
1x Diversity Crossover cable
The LaForge Pro module is a 5.8GHz spectrum scanner with OLED display and a load of features that will forever change the way you FPV.
Designed exclusivly for the Fat Shark module bay. With this main module you will immediately have the power to quickly tune into your crafts channel, or scan the spectrum to find a free channel, or even tune into a friends channel.
But it doesn't stop there; add the diversity module for an even more reliable FPV experience or get the video transmitter (April 2016) that can quickly bind to the LaForge Pro Module.
Full Graphics OSD: That’s right, everything that is displayed on the OLED will now be mirrored on the micro-displays in the form of an OSD.
USB Support: There is an entirely new graphical user interface for updating firmware and making custom settings. The module can be powered via USB and used as a real time spectrum analyzer which will appear on your computer’s display.
Microphone: A small microphone replaces the IR Emitter. The pilot may select this microphone from the settings menu to record pit audio over their DVR footage. This microphone has a low gain and should be adjusted in post production to increase the volume.
LED Control: For those advanced users, we have made a data pad available that will control a series of LEDs. An external 5v source will be needed and left up to the pilot to tap into. It will be well worth the mod to really push customization options over the top.
Version 4 Diversity module is required with the v4 Main Module in order to utilize the speaker. If you choose not to upgrade your diversity module you will need to remove the speaker from the v2 or Lower Diversity module.
