Lumenier TX5G6 5.8GHz 600mW 32CH Mini Video/Audio Transmitter for FPV

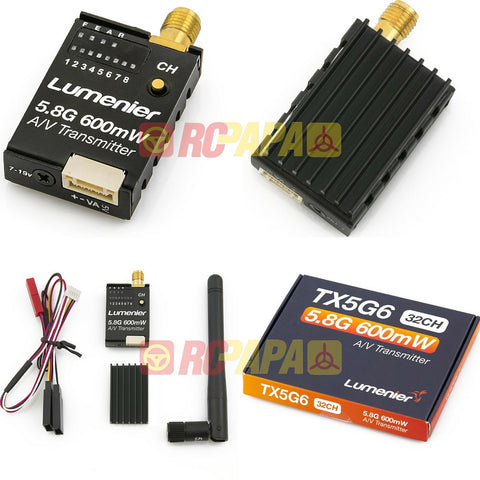

Package include :

1x transmitting unit (VTX) TX5G6

1x antennas (2db)

1x Heat Sink with 3M adhesive

1x power/ video cable

Summary

The Lumenier TX5G6 Mini 600mW 5.8GHz 32CH FPV video transmitter packs a whopping 600mW of ultra clean 5.8GHz power in a micro sized package! A must have for those looking for longer range and locked in video where weight is a factor. The TX5G6 has 32 channels and now includes the new Raceband frequencies. Our friends from ImmersionRC first divided the 5.8 band into 8 channels evenly spread out 37MHz from each other, which allows more racers flying at the same time on the same band. Lumenier Raceband transmitters are fully compatible with FatShark and ImmersionRC receivers.

The TX5G6 features an easy to use single button, LED interface. It also comes with a clean pre-wired harness, and only weighs 9g. It’s perfect for a wide range of aircraft!

Note: The metal housing acts as a heatsink and dissipates heat, mount in an area where there is good airflow. Do not power on the transmitter for long periods of time on the ground without active cooling as the transmitter may overheat.

TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty. Mount the VTX in an area with good air cooling.

Features :

32 channels: Cover F, E, A bands and R (Raceband) bands

Intuitive and easy to use button and LEDs for frequency selection

Small sized and light weight

Transmitter frequency: 5658-5925MHz with 600mW power output

Transmitting distance > 2000m (open area)

SMA Antenna connector

Dimensions: 32*22*8mm (not including SMA adapter)

Specifications :

Operating Voltage: 7 - 19V

Supply current: 220 mA

Operating Temperature: -10 +85 C

Video Band Width: 0-8.0 MHz

Audio carrier Frequency: 6.5 MHz

Video Input Level: 0.8,1.0,1.2 Vp-p

Video Input Impedance: 75 Ohm

Audio Input Level: 0.5 ,2.0 Vp-p

Audio Input Impedance: 10K Ohm

Weight: 9g (without antenna)

Antenna Connector:SMA Female Connector

Video Format: NTSC/PAL

Output Impedance: 50 Ohm

Output Power: 26, 26.5, 27 dBm

Frequency Selection: Single push to change CH, push and hold for 2 seconds to change FR
