Matek System Flight Controller F722-HD

Matek System Flight Controller F722-HD


FC Specifications

  • MCU: 216MHz STM32F722RET6
  • IMU: MPU6000 (SPI)
  • Baro: BMP280 (I2C)
  • Blackbox: 32M-byte Flash memory (SPI)
  • OSD: Support external DJI OSD/FrskyOSD,  No Analog MAX7456 OSD built-in
  • 6x Uarts with built-in inversion
  • 1x Softserial_Tx option
  • 10x Dshot/PWM outputs
  • 1x I2C
  • 4x ADC (VBAT, Current, RSSI, AirSpeed)

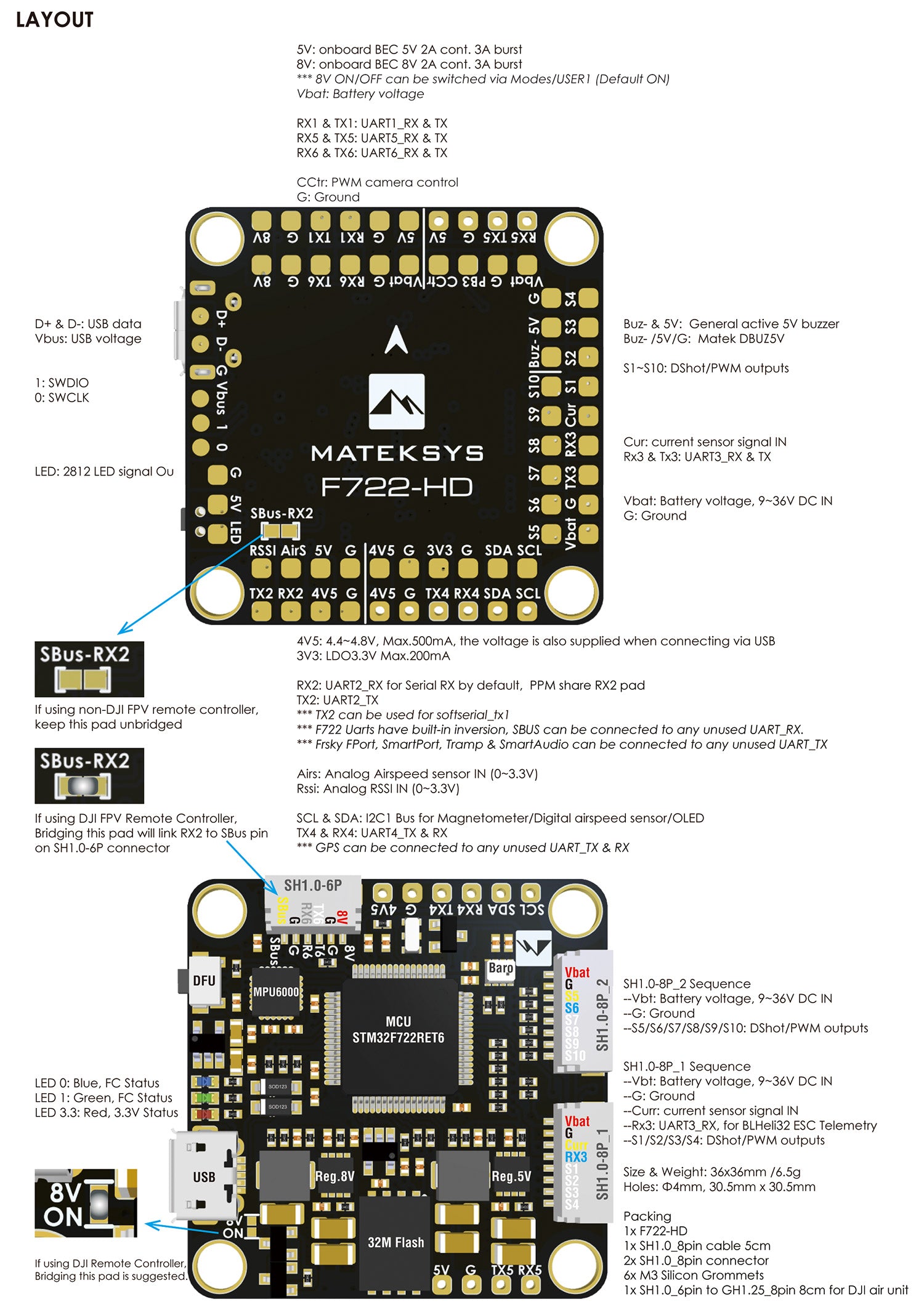

  • 2x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1~S10)
  • 1x SH1.0_6pin connector for DJI FPV Air Unit
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • Switchable 8V output
  • PWM camera control: Yes
  • TR/SA VTX control: Yes
  • WS2812 Led Strip : Yes
  • Beeper : Yes
  • RSSI: Yes
  • Analog Airspeed sensor: Yes
  • Digital Airspeed sensor: Yes

Power

  • Input: 9~36V (3~8S LiPo)
  • BEC: 5V 2A cont. (Max.3A)
  • BEC: 8V 2A cont. (Max.3A)
  • LDO 3.3V: Max.200mA
  • Battery Voltage Sensor: 1:10 (Scale 110)
  • No Current Sensor built-in

FC Firmware

  • BetaFlight unified target: MATEKF722HD(MTKS)
  • INAV target: MATEKF722PX

Physical

  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
  • Dimensions: 36 x 36 x 5 mm
  • Weight: 6.5g

Including

  • 1x FC F722-HD
  • 6x Silicon grommets M4 to M3
  • 1x SH1.0_8pin cable 5cm
  • 2x SH1.0_8pin connectors
  • 1x SH1.0_6pin to GH1.25_8pin cable 8cm
