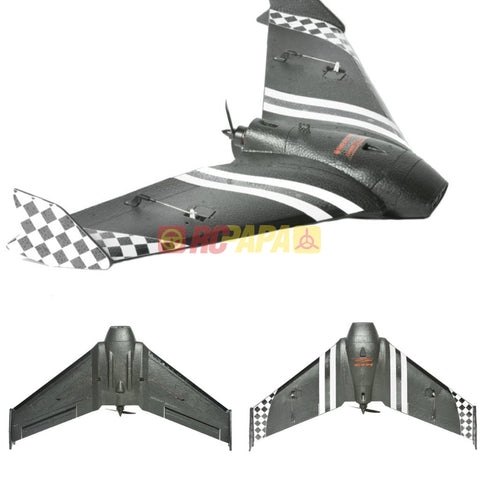

The Mini AR.Wing is a 600mm pure breed racing wing. Even being way smaller than her big sister, the original full sized AR Wing, the mini still keeps all the awesome features that fans loved about the AR. Wing. The high strength EPP material with built-in carbon ﬁber tube and strips makes it rigid and resistant to crashes and abuses. Her compact size and pre-installed power system will make it easy to carry around and get you in the air in no time. The high quality analog 8g servos will ensure youʼll have an agile and accurate performance.Featuring a huge equipment bay for its size,you can load her with a 3-4S 800-1300mAh battery to get more than 10 minutes flying time. All in all, a tiny beast that will assure you hours and hours of thrilling action!
Brand Name: Sonicmodell
Item Name: Mini AR Wing
Airplane Color: Black
Decal Color: White, Red
Wingspan: 600mm (23.6'')
Length: 212mm (8.35'')
Wing Area: 8.84dm²
Wing Load: 39.5g/dm²
Flying Speed: 10-70+km/h
Motor: 1806 2400KV
ESC: 30A with 5V/2A BEC (XT60 Plug)
Servo: Analog 8g *2
CG: 64mm from the main wing front lead
Airplane Weight: 143g
Package Weight: About 600g
Package Size: 360x190x120mm
Battery Compartment Size: 90x110x25mm
Recommended Parts for Mini AR.Wing (Not Included):
Battery: 3S 11.1V 1300mAh or 4S 1100mAh LiPo
Charger: SkyRC Balance Charger
Control System: 2.4G 4CH
Compatible Camera: Foxeer HS1177/1190
Flight Controller: F3 - F4 Series
FPV VTX: 5.8G
- Black EPP molded wing and fuselage, durable, light and ﬂexible.
- Built in carbon ﬁber tube and spar, rigid and super crash resistance.
- Compact size, perfect for casual FPV action.
- Bonus camera mount, compatible with all FPV and AIO cameras in the market.
- Extra plastic cover for protecting the main wing leading edge from damage.
- Carefully designed skids for hand grip launch and landing.
- Stable ﬂying performance, 10-70km/h ﬂying speed.
- Racing quadʼs power plant (motor / ESC / prop), swap around you electronics with no hassle!
- Huge equipment bay for more FPV gear and bigger battery.
- Plywood for fuselage with pre-cut FC mount.
- Convenient and clear “CG” mark under the main wing.
- "NACA" Air intake and outlet for FPV gear cooling.
- With two color decals, red and black.
Compared With AR Wing 900mm:
- Mini AR Wing has smaller wingspan, only 600mm.
- Mini AR Wing only has two nose covers.
- Mini AR Wing wing and fuselage are Unassemblable.
- Mini AR Wing comes with 1806 motor.
- Mini AR Wing doesn't have the unique camera mount position on the right wing.
- Mini AR Wing increased wing leading edge anti-collision blister.
This item does not include transmitter, receiver, battery, charger, Vtx and cameras.
Glue is not included.
1x Sonicmodell Mini AR Wing 600mm Wingspan EPP FPV Flying Wing PNP
