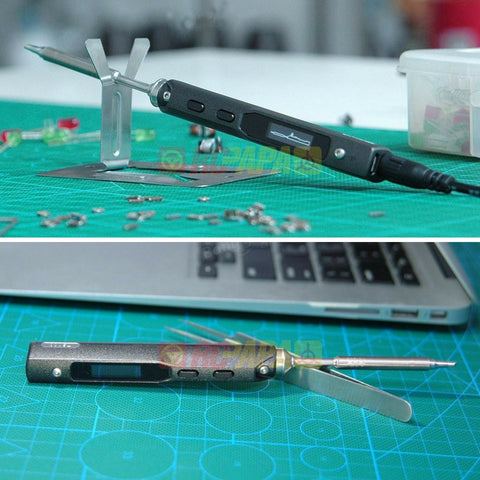

TS100 40W Digital OLED Soldering Iron Station (2 Solder Tips TS-B2 TS-KU)
Package includes :
1x TS100 Soldering Iron Station
1x TS-B2 Solder Tip
1x TS-KU Solder Tip
1x Allen Key (For replace the tips and heating element)
* Custom made XT60 power cord *
Summary
TS100 mini iron station is an internal heating intelligent CNC soldering iron, lightweight design, easy to assemble or disassemble and storage, comfortable handle, highly effective heating element and simple control interface, is indispensable tools for electronic work.
Based on 304 stainless steel nested polycarbonate housing, integration of safety circuit design power supply interface, anti-static structure, embedded STM32 processor chip, dual temperature sensor and acceleration extreme cooperate, TS100 intelligent temperature control between 100-400 degrees, instantaneous heating, automatic dormancy, over temperature alarm, and other functions
Features :
OLED display, intelligent temperature control & adjustment.
Sleep Mode, prevents dry dry heating, prolong the life span of soldering head, energy saving
Protection Mode, when temperature exceeds a preset max. working temperature, OLED warning sign will be displayed.
Anti-Static structure with ground wire connected.
Easy dis-mount design, total length 168mm.
Built-in acceleration sensors with STM32 chip.
Embedded universal interface DC5525.
Copper tightly fixed end of welding head, with double copper.
Reduced sectional area, improve thermal conductivity.
High grade heating element, excellent performance.
Resistant to high temperature oxidation.
Micro USB port interface, programable
Up to 300 degree c just need as low as 10 sec.
Download TS100 English User Manual
Download TS100 Schematic Diagram
Download TS100 Open Source Code
